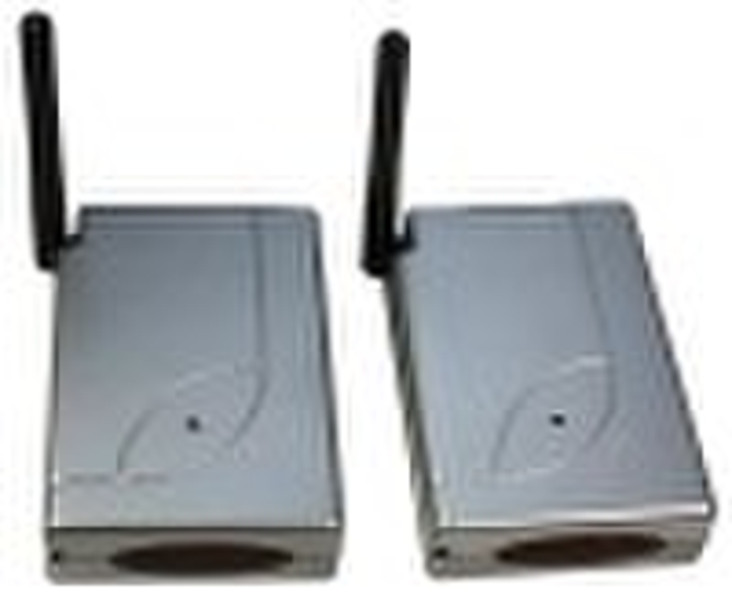

5.8GHz Wireless AV Sender
Vivian Lee
Contact person
Basic Information
| Place of Origin | Guangdong China (Mainland) |
|---|---|
| Brand Name | WLink |
| Model Number | 502S |
Production : 5.8GHz Wireless AV Sender Model No. : 502T/502R Audio/Video System----502S-Silver Features: Mini size with modern designWith 5.8GHz FrequencyExternal Omni-directional antennaNTSC/PAL video format availableWith 8 selectable channels(Dip Switch)Remote control the A/V source with IR extenderTransmit the crisp A/V signal with radio frequencyCompatible with Camcorder or CMOS camera application Specifications: ITEM 502T502R5.8GHz antenna External Omni-directional antenna External Omni-directional antenna 433MHz antenna Internal omni-directional antenna Internal Omni-directional antenna Transmit power 23 dBm(Typical) - Sensitivity - -86dBm type Frequency band 5.725GHz 5.865GHz 5.725GHz 5.865GHz Channel Customer 8 selectable channels 8 selectable channels Input format Available in NTSC or PAL - Output format - Available in NTSC or PAL Video input level 1 Vp-p@75Ω - Audio input level 1 Vp-p@600Ω - Video output level - 1 Vp-p@75Ω Audio output level - 1 Vp-p@600Ω Input/output Connector Combo Connectors Combo Connectors Operating condition Indoor usage recommend Indoor usage recommend Remote control frequency 433.92MHz 433.92MHz IR carrier frequency 32 38KHz 32 38KHz Power Consumption 9Volt DC, 500mA(Maximum) 9Volt DC, 500mA(Maximum) Operating Temperature -10 +60 -10 +60 Dimensions 106mm*70mm*23mm 106mm*70mm*23mm Weight 0.081KG 0.081KG
Delivery terms and packaging
Packaging Detail: neutral white box Delivery Detail: within 25 days after receipt of the payment.
Port: Zhongshan/Zhuhai
