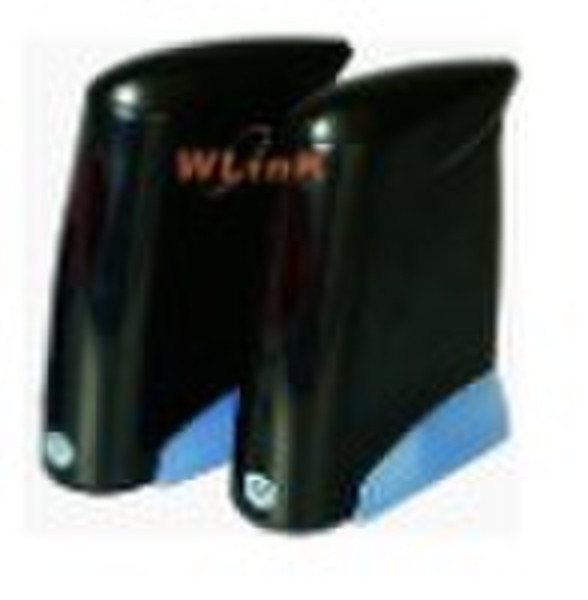

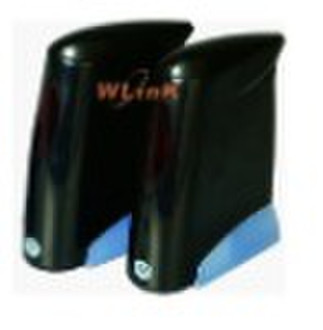

Wireless AV Sender

Wireless AV Sender 2.4 GHz wireless transmitter and receiver with 4 selectable channels(Dip Switch)Transmit the crisp A/V signal with radio frequency Compact size2.4 GHz antennas embedded into housing Remote control the A/V source with IR extender Compatible with Camcorder or CMOS camera application NTSC / PAL video format available Specifications: ITEM 201T201R 2.4GHz antenna Internal omni-directional antenna Internal Omni-directional antenna 433MHz antenna external omni-directional antenna external Omni-directional antenna Transmit power 10dBm(Typical) - Sensitivity - -85dBm(Typical) Frequency band 2.400 2.4835GHz 2.400 2.4835GHz Channel Customer 4 selectable channels 2414, 2432, 2450, 2468 MHz 4 selectable channels 2414, 2432, 2450, 2468 MHz Input format Available in NTSC or PAL - Output format - Available in NTSC or PAL Video input level 1Vp-p @75Ω - Audio input level 1 Vp-p@600Ω - Video output level - 1Vp-p @75 Ω Audio output level - 1 Vp-p@600Ω Input / output Connector MINI 6 DIN MINI 6 DIN Operating condition Indoor usage recommend Indoor usage recommend Remote control frequency 433.92MHz 433.92MHz IR carrier frequency 32 38KHz 32 38KHz Power Consumption 9Volt DC, 90mA(Typical) 9Volt DC, 200mA(Typical) Dimensions(L x W x H) 113mm×98mm×41mm 113mm×98mm×41mm Operating Temperature -10°C +60°C -10°C +60°C Dimension/Weight 20*13*11 cm / 0.94 KG Carton Size/ Quantity 46*41.5*28 cm / 16 PCS
